Name: BSC0702LSATMA1
Brand: Infineon Technologies
SKU: BSC0702LSATMA1
Price: 1.88 USD
Availability: InStock

REF: BSC0702LSATMA1 Infineon Technologies

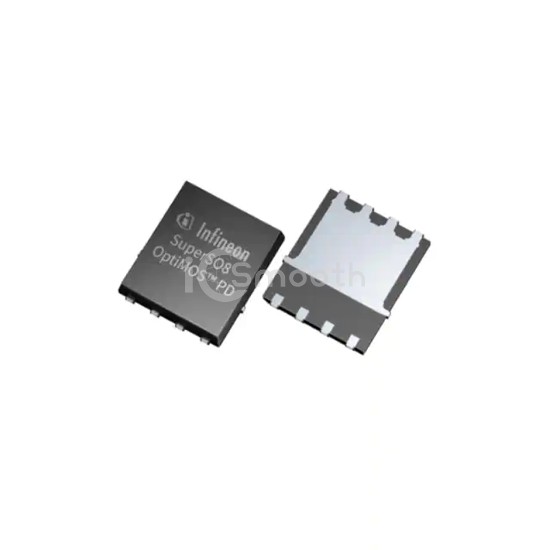

BSC0702LSATMA1

Infineon Technologies

MOSFET N-CH 60V 100A SUPERSO8

BSC0702LSATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 100A SUPERSO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 7,613

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.3mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.3V @ 49µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4400 pF @ 30 V
FET Feature	Standard
Power Dissipation (Max)	83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8
Package / Case	8-PowerTDFN
