BSC019N06NSATMA1

In Stock: 5,845

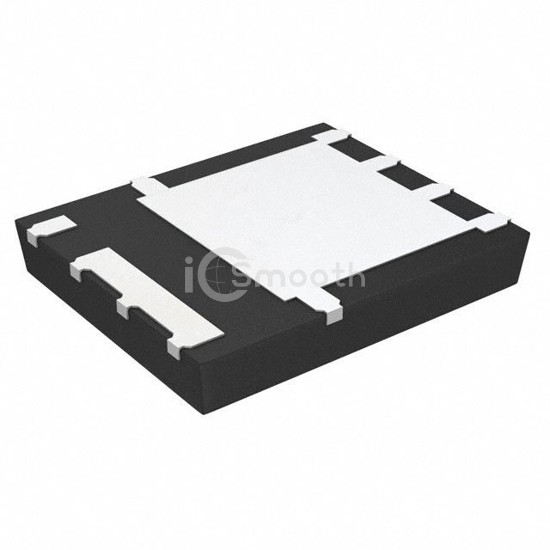

BSC019N06NSATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: BSC019N06NSATMA1 Infineon Technologies
BSC019N06NSATMA1

Infineon Technologies

MOSFET N-CH 60V 100A TDSON-8 FL

BSC019N06NSATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 100A TDSON-8 FL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,845

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.95mOhm @ 50A, 10V
Vgs(th) (Max) @ Id3.3V @ 74µA
Gate Charge (Qg) (Max) @ Vgs77 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5250 pF @ 30 V
FET Feature-
Power Dissipation (Max)136W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8 FL
Package / Case8-PowerTDFN
