Name: BSC014N06NSTATMA1
Brand: Infineon Technologies
SKU: BSC014N06NSTATMA1
Price: 4.22 USD
Availability: InStock

REF: BSC014N06NSTATMA1 Infineon Technologies

BSC014N06NSTATMA1

Infineon Technologies

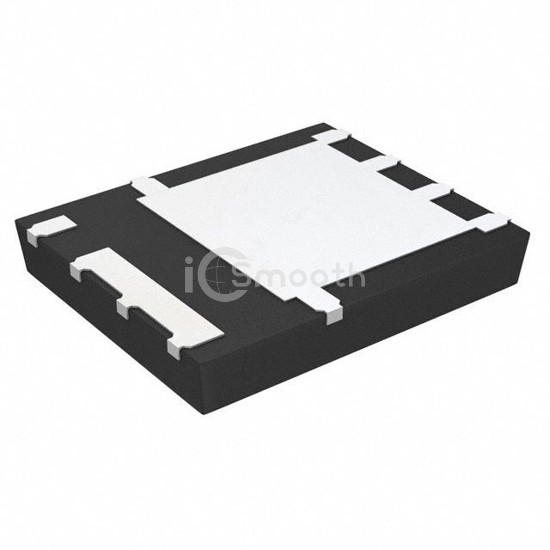

MOSFET N-CH 60V 100A TDSON-8 FL

BSC014N06NSTATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 100A TDSON-8 FL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 6,512

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.45mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.3V @ 120µA
Gate Charge (Qg) (Max) @ Vgs	104 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8125 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 188W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8 FL
Package / Case	8-PowerTDFN
