BSC010N04LSTATMA1

In Stock: 1,152

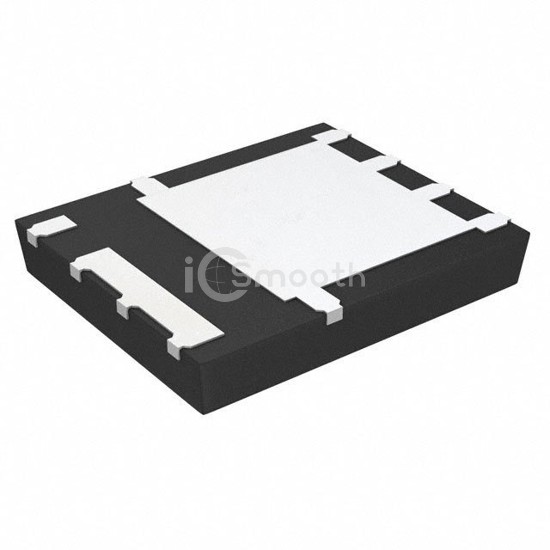

BSC010N04LSTATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: BSC010N04LSTATMA1 Infineon Technologies
BSC010N04LSTATMA1

Infineon Technologies

MOSFET N-CH 40V 39A/100A TDSON

BSC010N04LSTATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 39A/100A TDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 1,152

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C39A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs133 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds9520 pF @ 20 V
FET Feature-
Power Dissipation (Max)3W (Ta), 167W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8 FL
Package / Case8-PowerTDFN
