BSC005N03LS5ATMA1

In Stock: 4,803

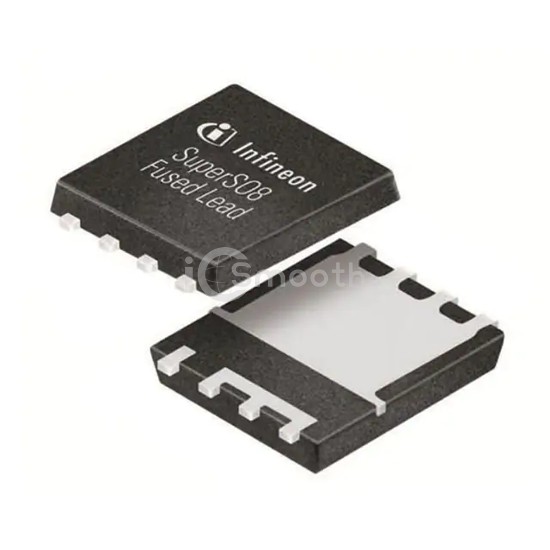

BSC005N03LS5ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: BSC005N03LS5ATMA1 Infineon Technologies
BSC005N03LS5ATMA1

Infineon Technologies

TRENCH <= 40V

BSC005N03LS5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. TRENCH <= 40V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,803

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C42A (Ta), 433A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.55mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs122 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds8900 pF @ 15 V
FET Feature-
Power Dissipation (Max)3W (Ta), 188W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8 FL
Package / Case8-PowerTDFN
