Name: BSA223SP
Brand: Infineon Technologies
SKU: BSA223SP
Availability: InStock

REF: BSA223SP Infineon Technologies

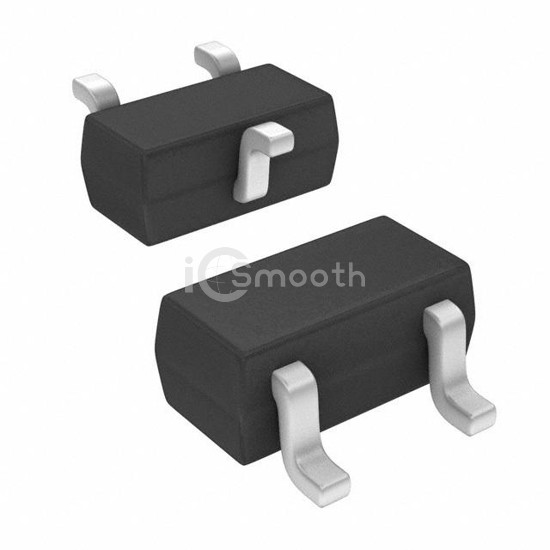

BSA223SP

MOSFET P-CH 20V 390MA SC75

BSA223SP is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 20V 390MA SC75. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 8,426

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	390mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	1.2Ohm @ 390mA, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 1.5µA
Gate Charge (Qg) (Max) @ Vgs	0.62 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	56 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	250mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SC-75
Package / Case	SC-75, SOT-416
