BAT15-05W

In Stock: 20,061

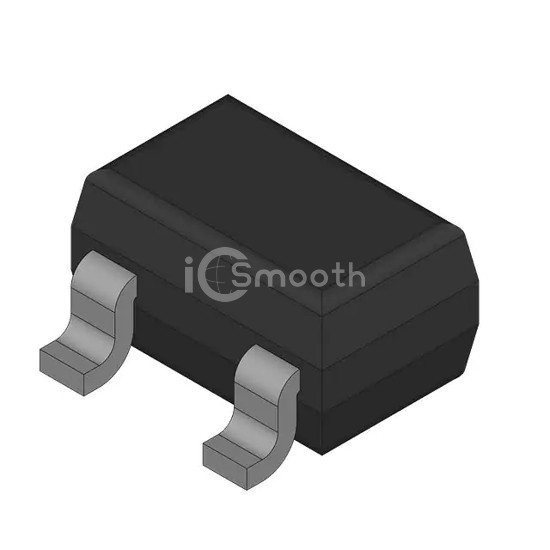

BAT15-05W - Infineon Technologies - Diodes - RF
REF: BAT15-05W Infineon Technologies
BAT15-05W

Infineon Technologies

RF MIXER/DETECTOR SCHOTTKY DIODE

BAT15-05W is a Diodes - RF manufactured by Infineon Technologies. RF MIXER/DETECTOR SCHOTTKY DIODE. Key specifications: operating temperature 150°C (TJ), package / case SC-70, SOT-323, current - max 110 mA.

Datasheet Request a Quote

In Stock: 20,061

Specifications

10 parameters
Product StatusActive
Diode TypeSchottky - 2 Pair Common Cathode
Voltage - Peak Reverse (Max)4V
Current - Max110 mA
Capacitance @ Vr, F0.5pF @ 0V, 1MHz
Resistance @ If, F-
Power Dissipation (Max)100 mW
Operating Temperature150°C (TJ)
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
