Name: AUIRFSL8409
Brand: Infineon Technologies
SKU: AUIRFSL8409
Availability: InStock

REF: AUIRFSL8409 Infineon Technologies

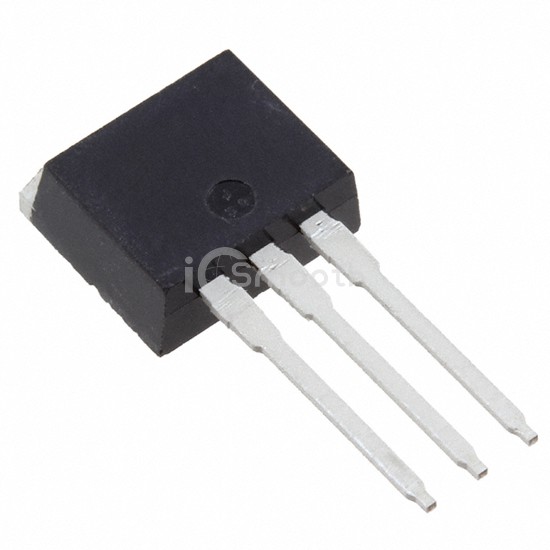

AUIRFSL8409

MOSFET N-CH 40V 195A TO262

AUIRFSL8409 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 195A TO262. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Short Leads, I²Pak.

Datasheet Request a Quote

In Stock: 8,765

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	195A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.2mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	450 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14240 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-262
Package / Case	TO-262-3 Short Leads, I²Pak
