Name: AUIRFSL8408
Brand: Infineon Technologies
SKU: AUIRFSL8408
Price: 1.66 USD
Availability: InStock

REF: AUIRFSL8408 Infineon Technologies

AUIRFSL8408

Infineon Technologies

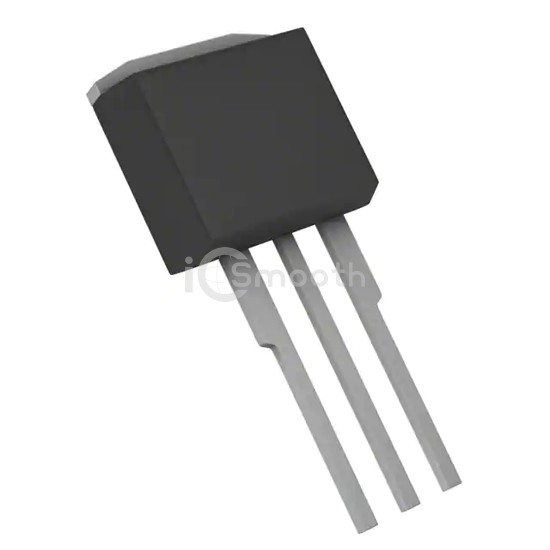

MOSFET N-CH 40V 195A TO262

AUIRFSL8408 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 195A TO262. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 450

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	195A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	324 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	10820 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	294W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
