Name: AUIRF8739L2TR
Brand: Infineon Technologies
SKU: AUIRF8739L2TR
Price: 8.82 USD
Availability: InStock

REF: AUIRF8739L2TR Infineon Technologies

AUIRF8739L2TR

Infineon Technologies

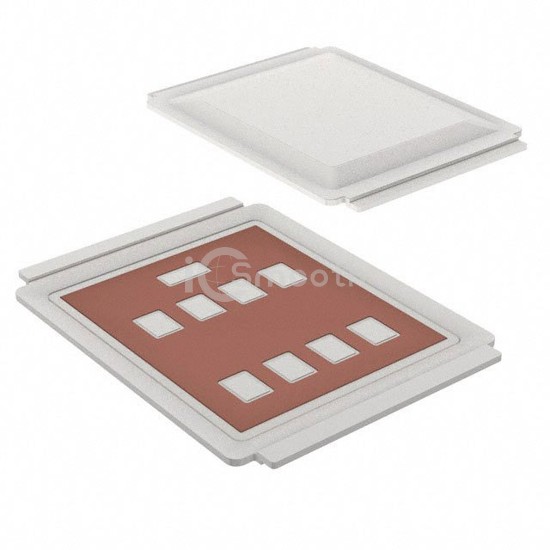

MOSFET N-CH 40V 57A DIRECTFET

AUIRF8739L2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 57A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric L8.

Datasheet Request a Quote

In Stock: 9,961

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	57A (Ta), 545A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	0.6mOhm @ 195A, 10V
Vgs(th) (Max) @ Id	3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	562 nC @ 10 V

Vgs (Max)	40V
Input Capacitance (Ciss) (Max) @ Vds	17890 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 340W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric L8
Package / Case	DirectFET™ Isometric L8
