Name: AUIRF7799L2TR
Brand: Infineon Technologies
SKU: AUIRF7799L2TR
Price: 7.60 USD
Availability: InStock

REF: AUIRF7799L2TR Infineon Technologies

AUIRF7799L2TR

Infineon Technologies

MOSFET N-CH 250V 375A DIRECTFET

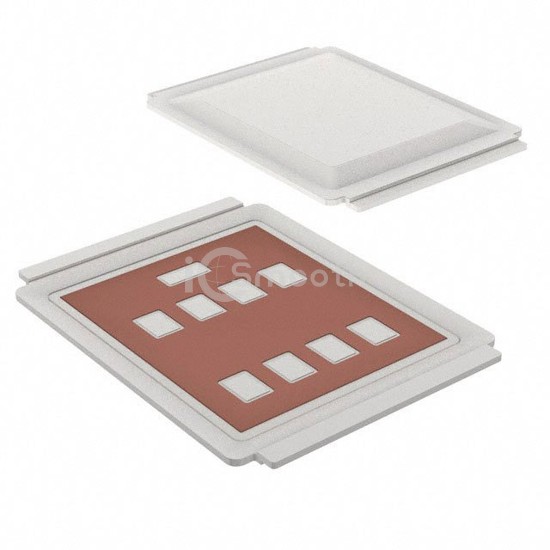

AUIRF7799L2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 250V 375A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric L8.

Datasheet Request a Quote

In Stock: 8,172

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	375A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	38mOhm @ 21A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	165 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	6714 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	4.3W (Ta), 125W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric L8
Package / Case	DirectFET™ Isometric L8
