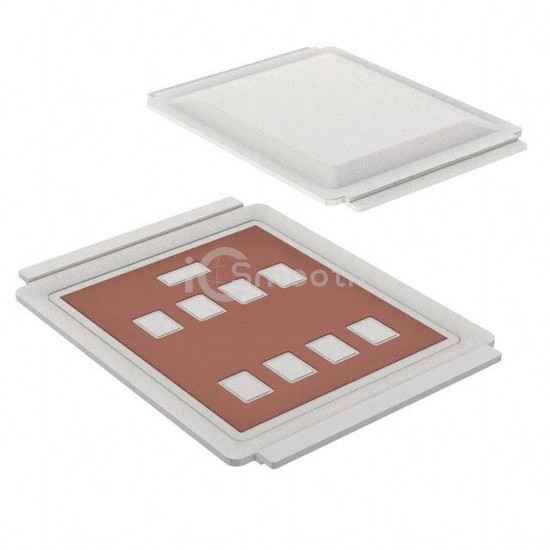

Name: AUIRF7749L2TR
Brand: Infineon Technologies
SKU: AUIRF7749L2TR
Price: 9.41 USD
Availability: InStock

REF: AUIRF7749L2TR Infineon Technologies

AUIRF7749L2TR

Infineon Technologies

MOSFET N-CH 60V 36A DIRECTFET

AUIRF7749L2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 36A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric L8.

Datasheet Request a Quote

In Stock: 6,989

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	36A (Ta), 345A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.5mOhm @ 120A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	275 nC @ 10 V

Vgs (Max)	60V
Input Capacitance (Ciss) (Max) @ Vds	10655 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 341W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric L8
Package / Case	DirectFET™ Isometric L8
