Name: AUIRF7736M2TR
Brand: Infineon Technologies
SKU: AUIRF7736M2TR
Price: 2.62 USD
Availability: InStock

REF: AUIRF7736M2TR Infineon Technologies

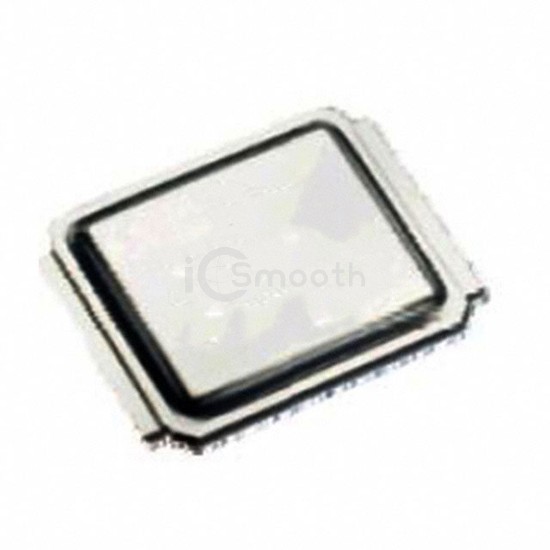

AUIRF7736M2TR

Infineon Technologies

MOSFET N-CH 40V 22A DIRECTFET

AUIRF7736M2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 22A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric M4.

Datasheet Request a Quote

In Stock: 3,072

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	22A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3mOhm @ 65A, 10V
Vgs(th) (Max) @ Id	4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	108 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4267 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 63W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric M4
Package / Case	DirectFET™ Isometric M4
