Name: AUIRF7734M2TR
Brand: Infineon Technologies
SKU: AUIRF7734M2TR
Availability: InStock

REF: AUIRF7734M2TR Infineon Technologies

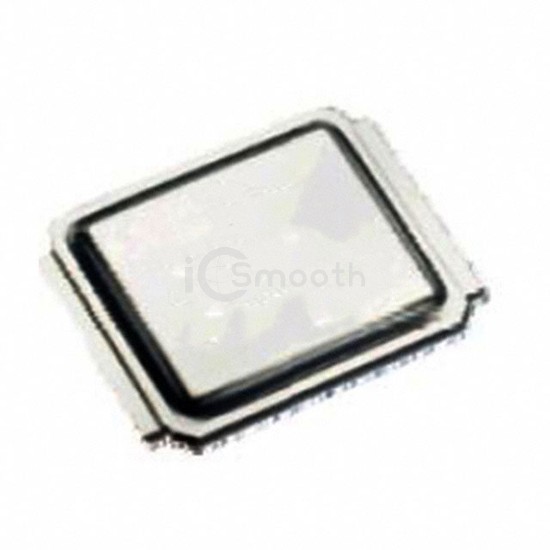

AUIRF7734M2TR

MOSFET N-CH 40V 17A DIRECTFET M2

AUIRF7734M2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 17A DIRECTFET M2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric M2.

Datasheet Request a Quote

In Stock: 8,335

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	17A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.9mOhm @ 43A, 10V
Vgs(th) (Max) @ Id	4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	72 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2545 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 46W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric M2
Package / Case	DirectFET™ Isometric M2
