Name: AUIRF7669L2TR
Brand: Infineon Technologies
SKU: AUIRF7669L2TR
Price: 8.97 USD
Availability: InStock

REF: AUIRF7669L2TR Infineon Technologies

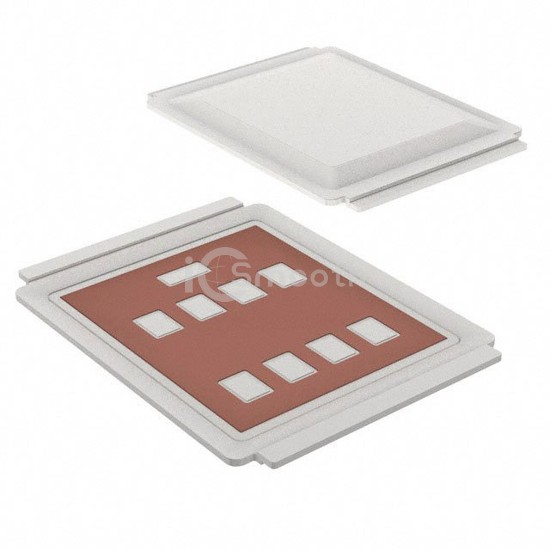

AUIRF7669L2TR

Infineon Technologies

MOSFET N-CH 100V 19A DIRECTFET

AUIRF7669L2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 19A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric L8.

Datasheet Request a Quote

In Stock: 4,230

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	19A (Ta), 114A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.4mOhm @ 68A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	120 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5660 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 100W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric L8
Package / Case	DirectFET™ Isometric L8
