Name: AUIRF7648M2TR
Brand: Infineon Technologies
SKU: AUIRF7648M2TR
Price: 4.00 USD
Availability: InStock

REF: AUIRF7648M2TR Infineon Technologies

AUIRF7648M2TR

Infineon Technologies

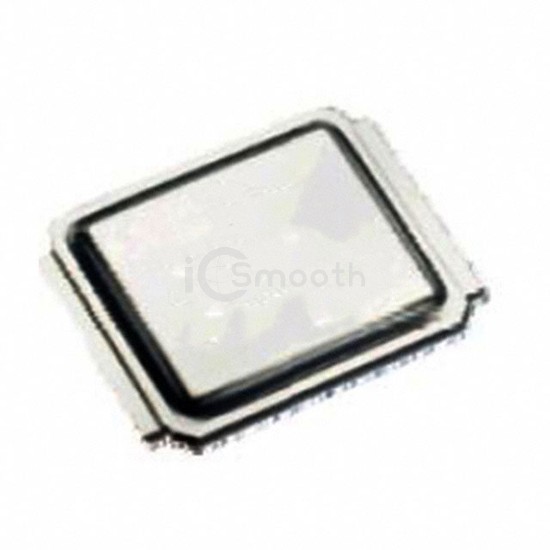

MOSFET N-CH 60V 14A DIRECTFET

AUIRF7648M2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 14A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric M4.

Datasheet Request a Quote

In Stock: 7,893

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 41A, 10V
Vgs(th) (Max) @ Id	4.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	53 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2170 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 63W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric M4
Package / Case	DirectFET™ Isometric M4
