Name: AUIRF7640S2TR
Brand: Infineon Technologies
SKU: AUIRF7640S2TR
Price: 1.90 USD
Availability: InStock

REF: AUIRF7640S2TR Infineon Technologies

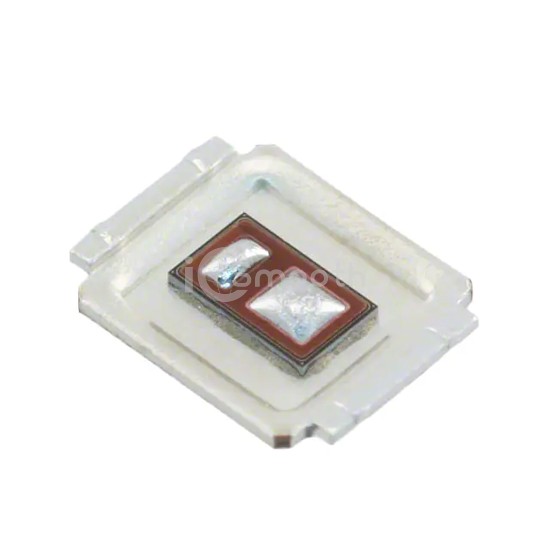

AUIRF7640S2TR

Infineon Technologies

MOSFET N-CH 60V 5.8A DIRECTFET

AUIRF7640S2TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 5.8A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric SB.

Datasheet Request a Quote

In Stock: 4,714

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	5.8A (Ta), 21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	36mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	5V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	450 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta), 30W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET SB
Package / Case	DirectFET™ Isometric SB
