Name: AUIRF1324WL
Brand: Infineon Technologies
SKU: AUIRF1324WL
Price: 4.14 USD
Availability: InStock

REF: AUIRF1324WL Infineon Technologies

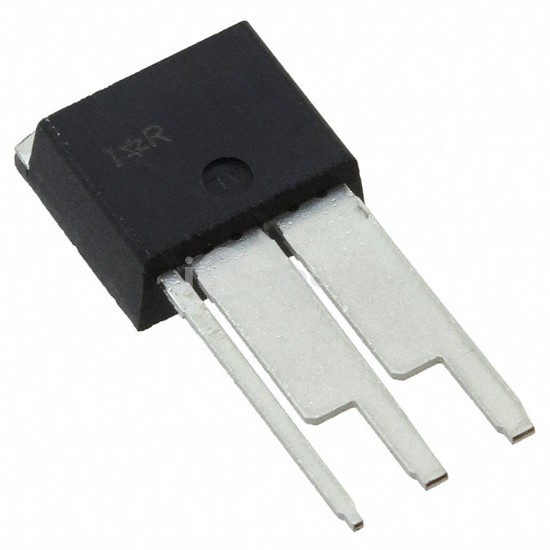

AUIRF1324WL

Infineon Technologies

MOSFET N-CH 24V 240A TO262-3

AUIRF1324WL is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 24V 240A TO262-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Wide Leads.

Datasheet Request a Quote

In Stock: 7,219

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	24 V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.3mOhm @ 195A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	180 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7630 pF @ 19 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262-3 Wide
Package / Case	TO-262-3 Wide Leads
