6EDL7141XUMA1

In Stock: 5,259

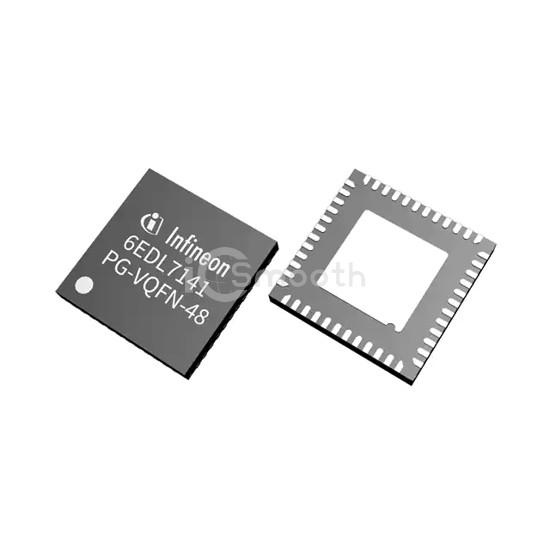

6EDL7141XUMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: 6EDL7141XUMA1 Infineon Technologies
6EDL7141XUMA1

Infineon Technologies

3-PHASE SMART GATE DRIVE CONTROL

6EDL7141XUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. 3-PHASE SMART GATE DRIVE CONTROL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 5.5V ~ 60V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,259

Tiered Pricing USD
1+ $2.9600 —
10+ $2.2110 -25%
25+ $2.0244 -32%
100+ $1.8197 -39%
250+ $1.7220 -42%
500+ $1.6631 -44%
1,000+ $1.6147 -45% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers3
Gate TypeN-Channel MOSFET
Voltage - Supply5.5V ~ 60V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad
Supplier Device PackagePG-VQFN-48-78
