2EDS9265HXUMA1

In Stock: 7,056

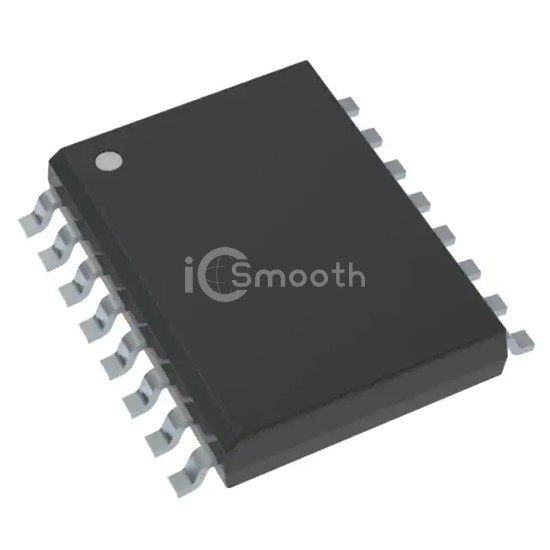

2EDS9265HXUMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: 2EDS9265HXUMA1 Infineon Technologies
2EDS9265HXUMA1

Infineon Technologies

IC IGBT DVR

2EDS9265HXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC IGBT DVR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 20V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 7,056

Tiered Pricing USD
1+ $2.2500 —
10+ $1.6690 -26%
25+ $1.5228 -32%
100+ $1.3622 -39%
250+ $1.2856 -43%
500+ $1.2394 -45% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, SiC MOSFET
Voltage - Supply20V
Logic Voltage - VIL, VIH-, 1.65V
Current - Peak Output (Source, Sink)4A, 8A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)650 V
Rise / Fall Time (Typ)6.5ns, 4.5ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-16-30
