2EDN8523GXTMA1

In Stock: 2,500

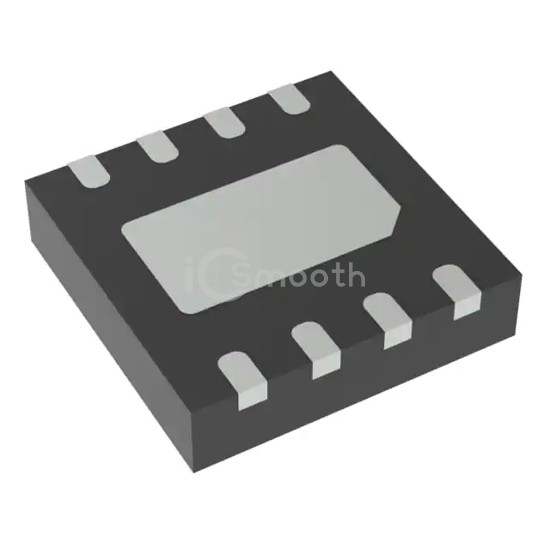

2EDN8523GXTMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: 2EDN8523GXTMA1 Infineon Technologies
2EDN8523GXTMA1

Infineon Technologies

IC GATE DRVR LOW-SIDE 8WSON

2EDN8523GXTMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR LOW-SIDE 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 20V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,500

Specifications

15 parameters
Product StatusActive
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 20V
Logic Voltage - VIL, VIH1.1V, 1.98V
Current - Peak Output (Source, Sink)5A, 5A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)5.3ns, 4.5ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device PackagePG-WSON-8-1
