2EDL8023GXUMA1

In Stock: 5,297

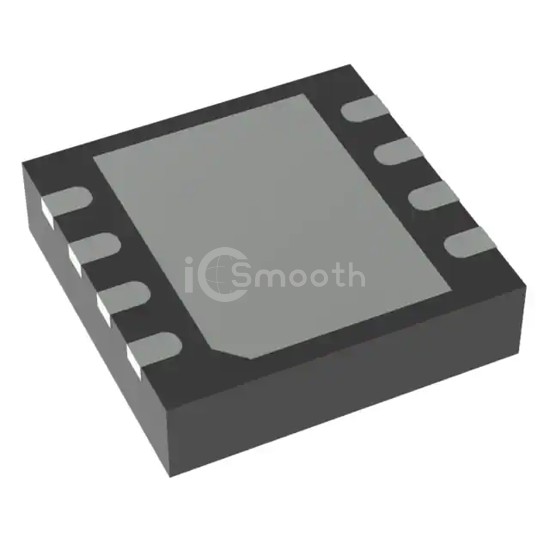

2EDL8023GXUMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: 2EDL8023GXUMA1 Infineon Technologies
2EDL8023GXUMA1

Infineon Technologies

INT. POWERSTAGE/DRIVER

2EDL8023GXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. INT. POWERSTAGE/DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 17V, package / case 8-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,297

Tiered Pricing USD
1+ $1.7000 —
10+ $1.2430 -27%
25+ $1.1304 -34%
100+ $1.0059 -41%
250+ $0.9465 -44%
500+ $0.9108 -46%
1,000+ $0.8813 -48%
2,500+ $0.8502 -50% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side and Low-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 17V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)3A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)90 V
Rise / Fall Time (Typ)45ns, 45ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VDFN Exposed Pad
Supplier Device PackagePG-VDSON-8-4
