2EDF7275KXUMA2

In Stock: 4,029

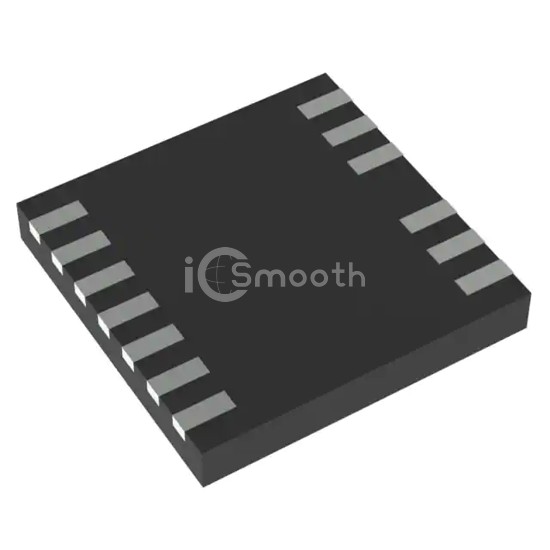

2EDF7275KXUMA2 - Infineon Technologies - PMIC - Gate Drivers
REF: 2EDF7275KXUMA2 Infineon Technologies
2EDF7275KXUMA2

Infineon Technologies

DRIVER IC

2EDF7275KXUMA2 is a PMIC - Gate Drivers manufactured by Infineon Technologies. DRIVER IC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 20V, package / case 13-TFLGA.

Request a Quote

In Stock: 4,029

Tiered Pricing USD
1+ $2.2000 —
10+ $1.6300 -26%
25+ $1.4872 -32%
100+ $1.3298 -40%
250+ $1.2548 -43%
500+ $1.2095 -45%
1,000+ $1.1723 -47% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply20V
Logic Voltage - VIL, VIH-, 1.65V
Current - Peak Output (Source, Sink)4A, 8A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)6.5ns, 4.5ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case13-TFLGA
Supplier Device PackagePG-TFLGA-13-1
