2ED4820EMXUMA2

In Stock: 2,990

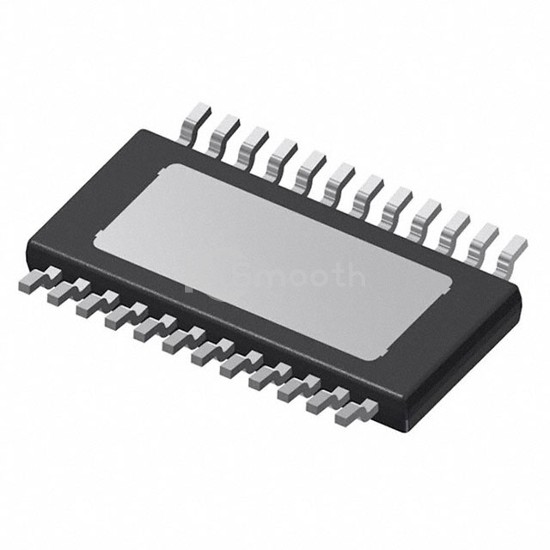

2ED4820EMXUMA2 - Infineon Technologies - PMIC - Gate Drivers
REF: 2ED4820EMXUMA2 Infineon Technologies
2ED4820EMXUMA2

Infineon Technologies

48 V SMART HIGH-SIDE MOSFET GATE

2ED4820EMXUMA2 is a PMIC - Gate Drivers manufactured by Infineon Technologies. 48 V SMART HIGH-SIDE MOSFET GATE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 24-TSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 2,990

Tiered Pricing USD
1+ $7.2700 —
10+ $4.9190 -32%
100+ $3.6965 -49% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply3V ~ 5.5V
Logic Voltage - VIL, VIH0.7V, 2.1V
Current - Peak Output (Source, Sink)300mA, 300mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-TSDSO-24
