2ED2304S06FXLLA1

In Stock: 595

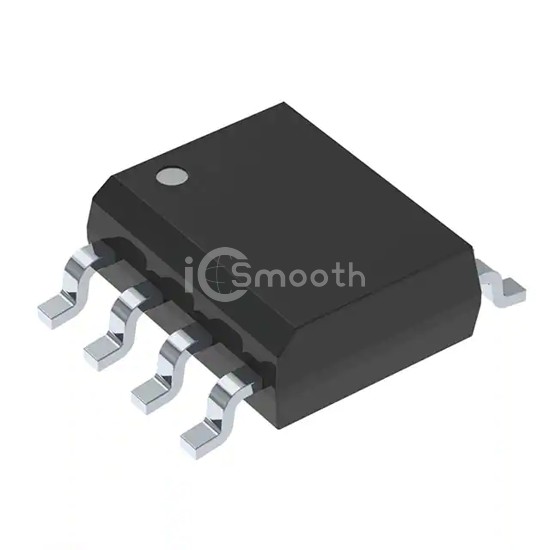

2ED2304S06FXLLA1 - Infineon Technologies - PMIC - Gate Drivers
REF: 2ED2304S06FXLLA1 Infineon Technologies
2ED2304S06FXLLA1

Infineon Technologies

LEVEL SHIFT SOI

2ED2304S06FXLLA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. LEVEL SHIFT SOI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 17.5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 595

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 17.5V
Logic Voltage - VIL, VIH1.1V, 1.7V
Current - Peak Output (Source, Sink)360mA, 700mA
Input TypeCMOS
High Side Voltage - Max (Bootstrap)650 V
Rise / Fall Time (Typ)48ns, 24ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device PackagePG-DSO-8-910
