2ED020I12F2XUMA1

In Stock: 10,054

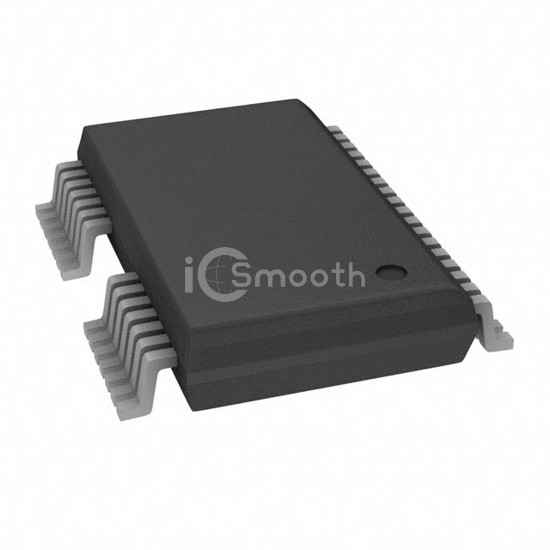

2ED020I12F2XUMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: 2ED020I12F2XUMA1 Infineon Technologies
2ED020I12F2XUMA1

Infineon Technologies

IC GATE DRVR HALF-BRIDG DSO36-58

2ED020I12F2XUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDG DSO36-58. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13V ~ 20V, package / case 36-BSSOP (0.295", 7.50mm Width), 32 Leads.

Datasheet Request a Quote

In Stock: 10,054

Tiered Pricing USD
1+ $6.2100 —
10+ $4.7640 -23%
25+ $4.4032 -29%
100+ $4.0070 -35%
250+ $3.8180 -39%
500+ $3.7042 -40% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT
Voltage - Supply13V ~ 20V
Logic Voltage - VIL, VIH1.5V, 3.5V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)1200 V
Rise / Fall Time (Typ)30ns, 50ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case36-BSSOP (0.295", 7.50mm Width), 32 Leads
Supplier Device PackagePG-DSO-36-58
