1EDU20I12SVXUMA1

In Stock: 1,000

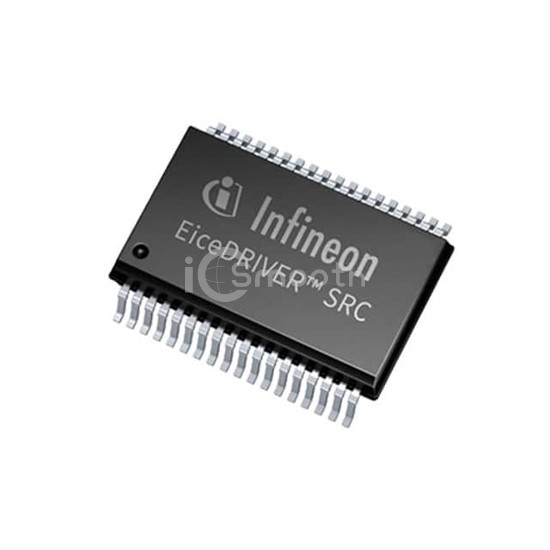

1EDU20I12SVXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1EDU20I12SVXUMA1 Infineon Technologies
1EDU20I12SVXUMA1

Infineon Technologies

IC IGBT GATE DRIVER 36DSOP

1EDU20I12SVXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. IC IGBT GATE DRIVER 36DSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ).

Datasheet Request a Quote

In Stock: 1,000

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)-
Current - Output High, Low-
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case-
Supplier Device Package-
Approval Agency-
