1EDS5663HXUMA1

In Stock: 577

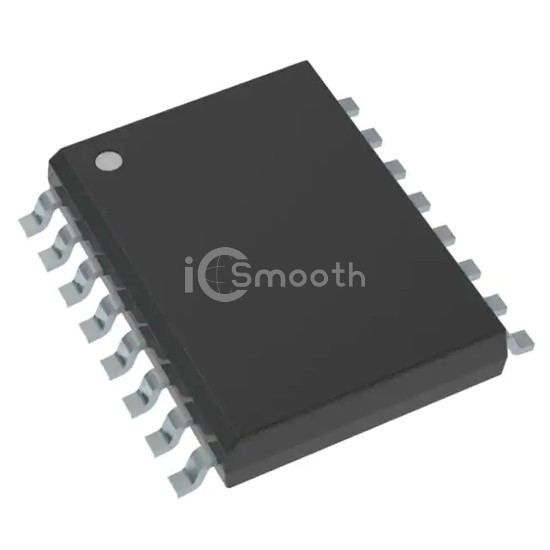

1EDS5663HXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1EDS5663HXUMA1 Infineon Technologies
1EDS5663HXUMA1

Infineon Technologies

IC DRIVER IC GAN DSO-16

1EDS5663HXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. IC DRIVER IC GAN DSO-16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 577

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)150V/ns
Propagation Delay tpLH / tpHL (Max)44ns, 44ns
Pulse Width Distortion (Max)18ns (Typ)
Rise / Fall Time (Typ)6.5ns, 4.5ns
Current - Output High, Low4A, 8A
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply3.13V ~ 3.47V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-16-30
Approval AgencyCQC, CSA, UL, VDE
