1EDS20I12SVXUMA1

In Stock: 4,093

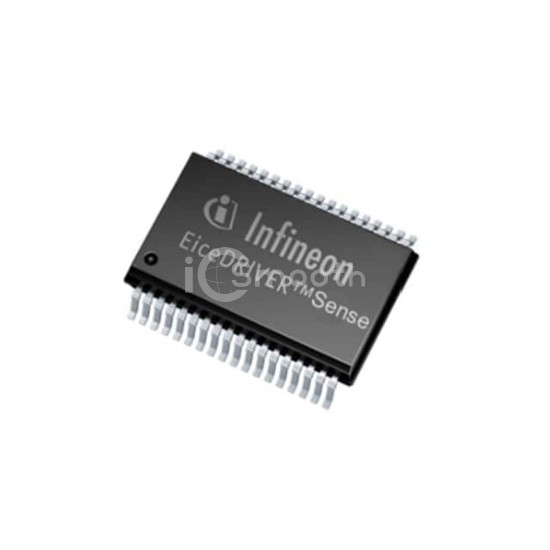

1EDS20I12SVXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1EDS20I12SVXUMA1 Infineon Technologies
1EDS20I12SVXUMA1

Infineon Technologies

IC GATE DRIVER HVIC DSO36

1EDS20I12SVXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. IC GATE DRIVER HVIC DSO36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ).

Datasheet Request a Quote

In Stock: 4,093

Tiered Pricing USD
1+ $7.6300 —
10+ $5.9000 -23%
25+ $5.4676 -28%
100+ $4.9916 -35%
250+ $4.7648 -38%
500+ $4.6280 -39% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)-
Current - Output High, Low-
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case-
Supplier Device Package-
Approval Agency-
