1EDN7136GXTMA1

In Stock: 7,975

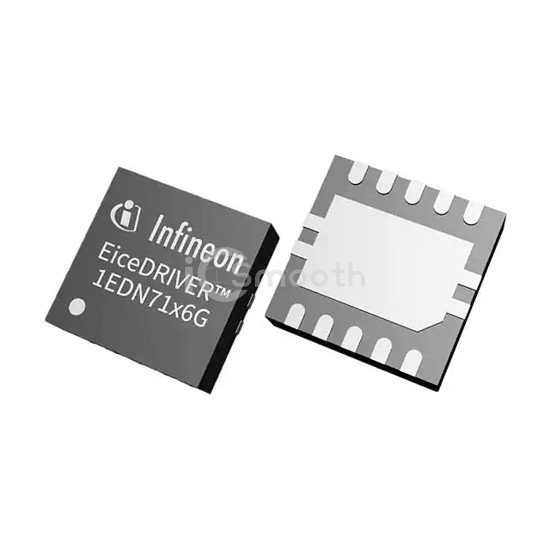

1EDN7136GXTMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: 1EDN7136GXTMA1 Infineon Technologies
1EDN7136GXTMA1

Infineon Technologies

INT. POWERSTAGE/DRIVER PG-VSON-1

1EDN7136GXTMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. INT. POWERSTAGE/DRIVER PG-VSON-1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.2V ~ 11V, package / case 10-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,975

Tiered Pricing USD
1+ $0.6700 —
10+ $0.4760 -29%
25+ $0.4268 -36%
100+ $0.3730 -44%
250+ $0.3474 -48%
500+ $0.3320 -50%
1,000+ $0.3192 -52% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side or Low-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.2V ~ 11V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)1A, 1A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)5.5ns, 5.5ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-VFDFN Exposed Pad
Supplier Device PackagePG-VSON-10-4
