1EDI2010ASXUMA1

In Stock: 2,000

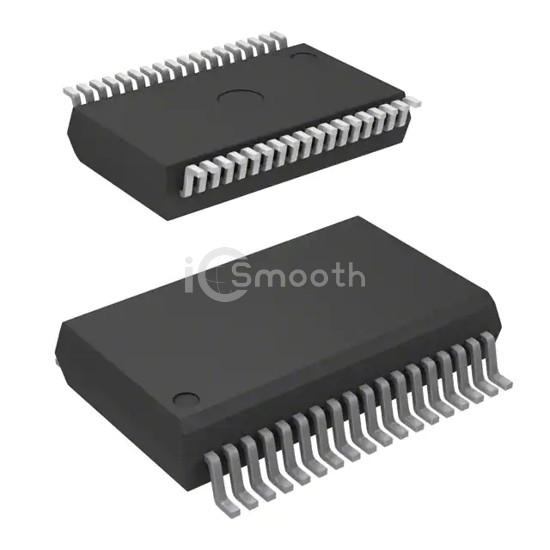

1EDI2010ASXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1EDI2010ASXUMA1 Infineon Technologies
1EDI2010ASXUMA1

Infineon Technologies

IC GATE DRIVER HVIC DSO36

1EDI2010ASXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. IC GATE DRIVER HVIC DSO36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 36-BSSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,000

Tiered Pricing USD
1+ $10.1400 —
10+ $7.9160 -22%
25+ $7.3596 -27%
100+ $6.7482 -33%
250+ $6.4568 -36%
500+ $6.2811 -38% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)120ns, 150ns
Current - Output High, Low-
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply13V ~ 18V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case36-BSSOP (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-36-63
Approval Agency-
