1EDF5673FXUMA1

In Stock: 9,430

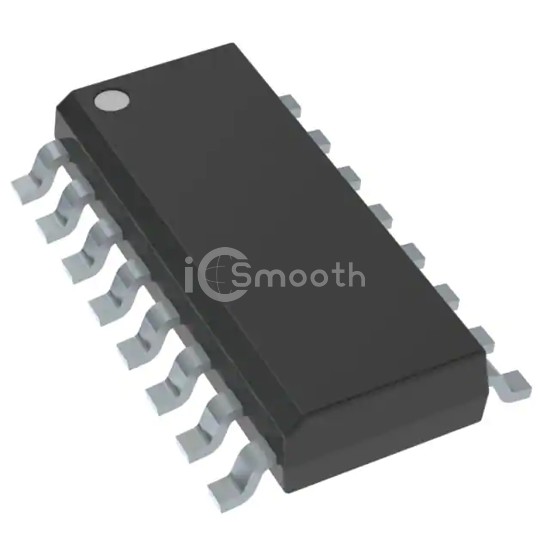

1EDF5673FXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1EDF5673FXUMA1 Infineon Technologies
1EDF5673FXUMA1

Infineon Technologies

IC DRIVER IC GAN DSO-16-11

1EDF5673FXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. IC DRIVER IC GAN DSO-16-11. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-SOIC (0.154", 3.90mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 9,430

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation1500VDC
Common Mode Transient Immunity (Min)150V/ns
Propagation Delay tpLH / tpHL (Max)44ns, 44ns
Pulse Width Distortion (Max)18ns (Typ)
Rise / Fall Time (Typ)6.5ns, 4.5ns
Current - Output High, Low4A, 8A
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply3.13V ~ 3.47V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device PackagePG-DSO-16-11
Approval AgencyCQC, CSA, UL, VDE
