1EDC20H12AHXUMA1

In Stock: 5,123
1EDC20H12AHXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1EDC20H12AHXUMA1 Infineon Technologies
1EDC20H12AHXUMA1

Infineon Technologies

IC IGBT GATE DRIVER UL 8DSOP

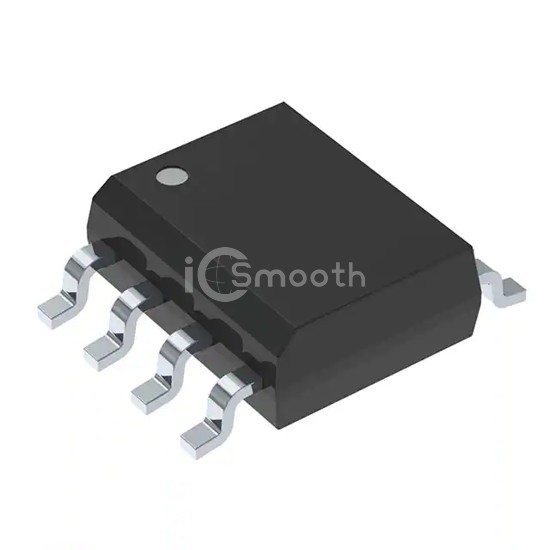

1EDC20H12AHXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. IC IGBT GATE DRIVER UL 8DSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,123

Tiered Pricing USD
1+ $2.6900 —
10+ $2.0090 -25%
25+ $1.8376 -32%
100+ $1.6489 -39%
250+ $1.5590 -42%
500+ $1.5048 -44% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)10ns, 9ns
Current - Output High, Low-
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply3.1V ~ 17V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-8-59
Approval Agency-
