1ED3890MU12MXUMA1

In Stock: 9,933

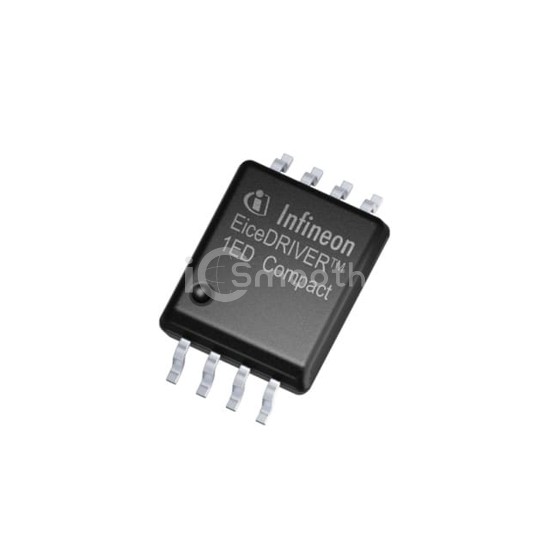

1ED3890MU12MXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1ED3890MU12MXUMA1 Infineon Technologies
1ED3890MU12MXUMA1

Infineon Technologies

1ED3890MU12MXUMA1

1ED3890MU12MXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. 1ED3890MU12MXUMA1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-BSSOP (0.295", 7.50mm Width), approval agency UL, VDE.

Datasheet Request a Quote

In Stock: 9,933

Tiered Pricing USD
1+ $7.1300 —
10+ $5.5010 -23%
25+ $5.0932 -29%
100+ $4.6451 -35%
250+ $4.4314 -38%
500+ $4.3026 -40% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation-
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)15ns, 15ns
Current - Output High, Low-
Current - Peak Output9A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply13V ~ 25V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-BSSOP (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-16-28
Approval AgencyUL, VDE
