1ED3890MC12MXUMA1

In Stock: 9,007

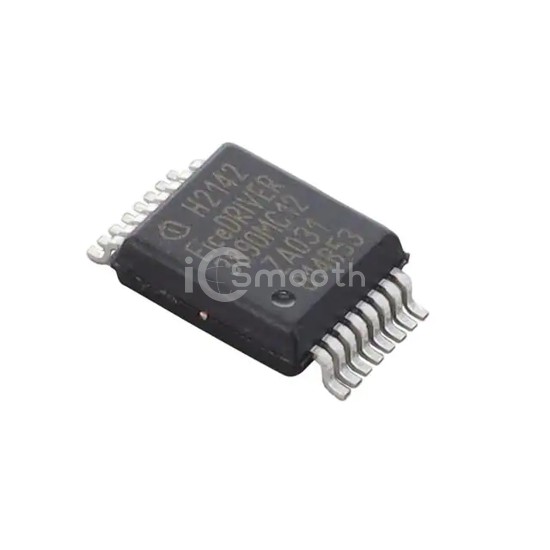

1ED3890MC12MXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1ED3890MC12MXUMA1 Infineon Technologies
1ED3890MC12MXUMA1

Infineon Technologies

ISOLATED DRIVER PG-DSO-16

1ED3890MC12MXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. ISOLATED DRIVER PG-DSO-16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-BSSOP (0.295", 7.50mm Width), approval agency UL, VDE.

Datasheet Request a Quote

In Stock: 9,007

Tiered Pricing USD
1+ $7.2600 —
10+ $5.6010 -23%
25+ $5.1872 -29%
100+ $4.7319 -35%
250+ $4.5149 -38%
500+ $4.3841 -40% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)200V/ns
Propagation Delay tpLH / tpHL (Max)270ns, 262ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)15ns, 15ns
Current - Output High, Low9A, 9A
Current - Peak Output9A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply13V ~ 25V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-BSSOP (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-16-28
Approval AgencyUL, VDE
