1ED3251MC12HXUMA1

In Stock: 5,501

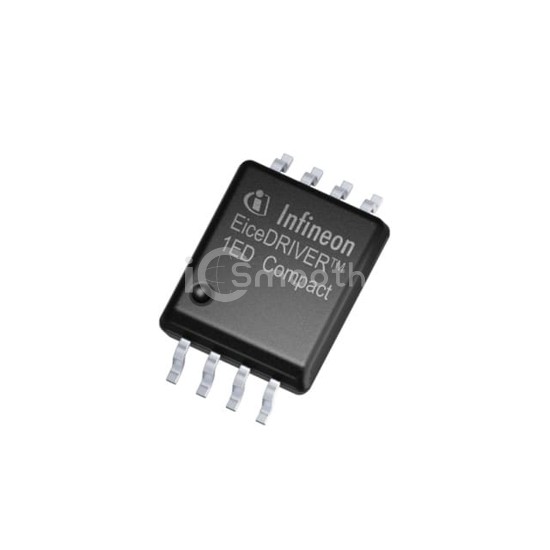

1ED3251MC12HXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1ED3251MC12HXUMA1 Infineon Technologies
1ED3251MC12HXUMA1

Infineon Technologies

ISOLATED GATE DRIVER

1ED3251MC12HXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. ISOLATED GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency UL, VDE.

Datasheet Request a Quote

In Stock: 5,501

Tiered Pricing USD
1+ $2.6900 —
10+ $2.0040 -26%
25+ $1.8328 -32%
100+ $1.6446 -39%
250+ $1.5549 -42%
500+ $1.5008 -44% BEST

Specifications

18 parameters
Product StatusActive
Technology-
Number of Channels1
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)200kV/µs
Propagation Delay tpLH / tpHL (Max)110ns, 110ns
Pulse Width Distortion (Max)5ns
Rise / Fall Time (Typ)9ns, 8.5ns
Current - Output High, Low9A, 18A
Current - Peak Output18A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply10V ~ 35V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-8-66
Approval AgencyUL, VDE
