1ED3240MC12HXUMA1

In Stock: 2,645

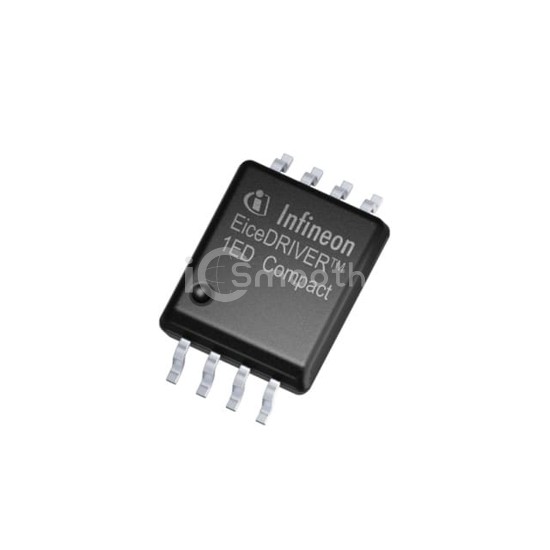

1ED3240MC12HXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1ED3240MC12HXUMA1 Infineon Technologies
1ED3240MC12HXUMA1

Infineon Technologies

ISOLATED GATE DRIVER

1ED3240MC12HXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. ISOLATED GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency UL, VDE.

Datasheet Request a Quote

In Stock: 2,645

Tiered Pricing USD
1,000+ $1.2188 —
2,000+ $1.1871 -3%
3,000+ $1.1713 -4%
5,000+ $1.1537 -5%
7,000+ $1.1435 -6% BEST

Specifications

18 parameters
Product StatusActive
Technology-
Number of Channels1
Voltage - Isolation5700Vrms
Common Mode Transient Immunity (Min)200kV/µs
Propagation Delay tpLH / tpHL (Max)110ns, 110ns
Pulse Width Distortion (Max)5ns
Rise / Fall Time (Typ)9ns, 8.5ns
Current - Output High, Low10A, 10A
Current - Peak Output10A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply10V ~ 35V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-8-66
Approval AgencyUL, VDE
