1ED3122MU12HXUMA1

In Stock: 1,317

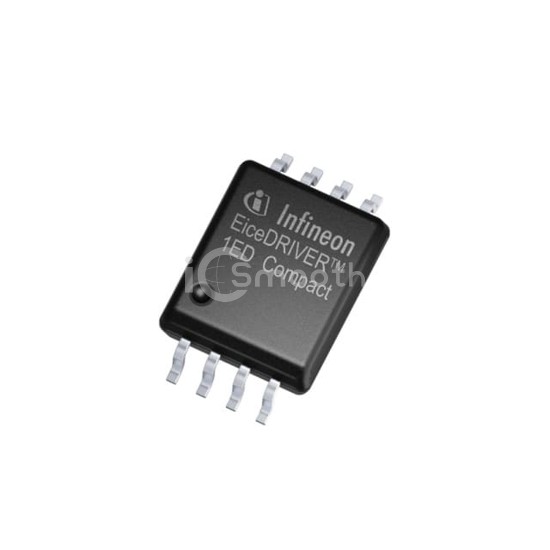

1ED3122MU12HXUMA1 - Infineon Technologies - Isolators - Gate Drivers
REF: 1ED3122MU12HXUMA1 Infineon Technologies
1ED3122MU12HXUMA1

Infineon Technologies

1ED3122MU12HXUMA1

1ED3122MU12HXUMA1 is a Isolators - Gate Drivers manufactured by Infineon Technologies. 1ED3122MU12HXUMA1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency UL.

Datasheet Request a Quote

In Stock: 1,317

Tiered Pricing USD
1+ $2.0500 —
10+ $1.5170 -26%
25+ $1.3824 -33%
100+ $1.2344 -40%
250+ $1.1639 -43%
500+ $1.1214 -45% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation1200Vrms
Common Mode Transient Immunity (Min)200kV/µs
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)15ns, 15ns
Current - Output High, Low5.5A, 5.5A
Current - Peak Output10A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply10V ~ 35V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-8-66
Approval AgencyUL
