HRS100SWAB090

In Stock: 3,013

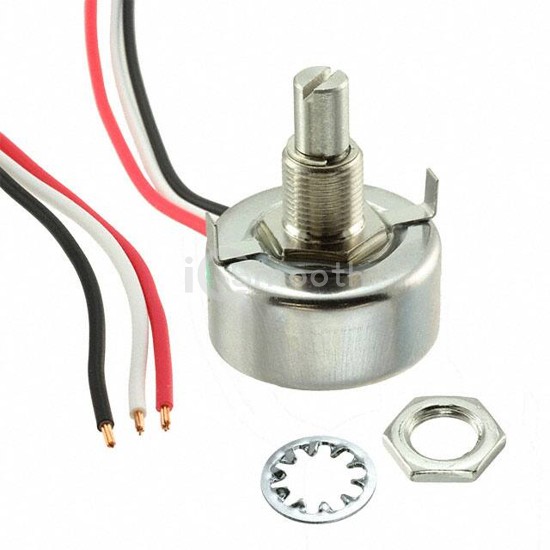

HRS100SWAB090 - Honeywell Sensing and Productivity Solutions - Position Sensors - Angle, Linear Position Measuring
REF: HRS100SWAB090 Honeywell Sensing and Productivity Solutions
HRS100SWAB090

Honeywell Sensing and Productivity Solutions

SENSOR ROTARY 90 DEG WIRE LEADS

HRS100SWAB090 is a Position Sensors - Angle, Linear Position Measuring manufactured by Honeywell Sensing and Productivity Solutions. SENSOR ROTARY 90 DEG WIRE LEADS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 5V, package / case Module, Slotted Shaft.

Datasheet Request a Quote

In Stock: 3,013

Specifications

17 parameters
Product StatusObsolete
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 90°, 0° ~ 90°
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeSlotted Shaft
Linearity±2%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypeSurface Mount
Termination StyleWire Leads
Operating Temperature-40°C ~ 85°C
Package / CaseModule, Slotted Shaft
Supplier Device Package-
