IGTM20N40A

In Stock: 1,197

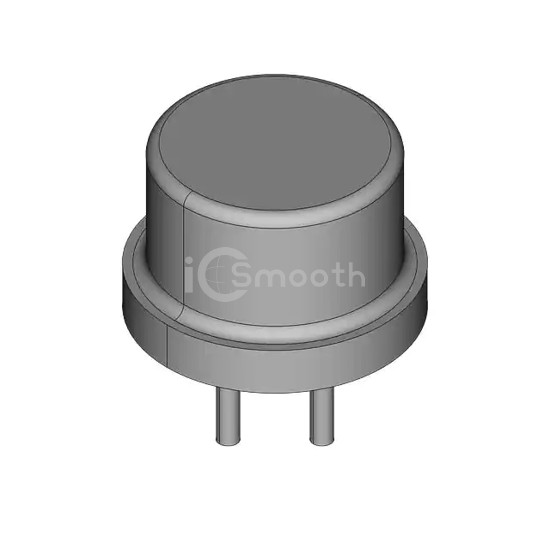

IGTM20N40A - Harris Corporation - Transistors - IGBTs - Single
REF: IGTM20N40A Harris Corporation
IGTM20N40A

Harris Corporation

N CHANNEL IGBT FOR SWITCHING APP

IGTM20N40A is a Transistors - IGBTs - Single manufactured by Harris Corporation. N CHANNEL IGBT FOR SWITCHING APP. Key specifications: mounting type Through Hole, package / case TO-204AA, TO-3, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 1,197

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)400 V
Current - Collector (Ic) (Max)20 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic-
Power - Max-
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3
