HI2309JCQ

In Stock: 334

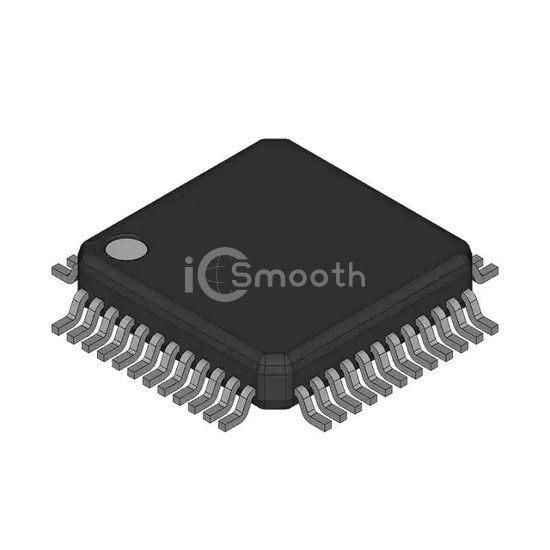

HI2309JCQ - Harris Corporation - Data Acquisition - Digital to Analog Converters (DAC)
REF: HI2309JCQ Harris Corporation
HI2309JCQ

Harris Corporation

TRIPLE 10-BIT, RGB, 3-CH DAC

HI2309JCQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Harris Corporation. TRIPLE 10-BIT, RGB, 3-CH DAC. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C, voltage - supply, digital 4.75V ~ 5.25V, package / case 48-BQFP.

Datasheet Request a Quote

In Stock: 334

Specifications

16 parameters
Product StatusActive
Number of Bits10
Number of D/A Converters3
Settling Time-
Output TypeCurrent - Unbuffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog4.75V ~ 5.25V
Voltage - Supply, Digital4.75V ~ 5.25V
INL/DNL (LSB)±2, ±0.5
Architecture-
Operating Temperature-20°C ~ 75°C
Package / Case48-BQFP
Supplier Device Package48-MQFP (12x12)
Mounting TypeSurface Mount
