CD74HC109M

In Stock: 2,768

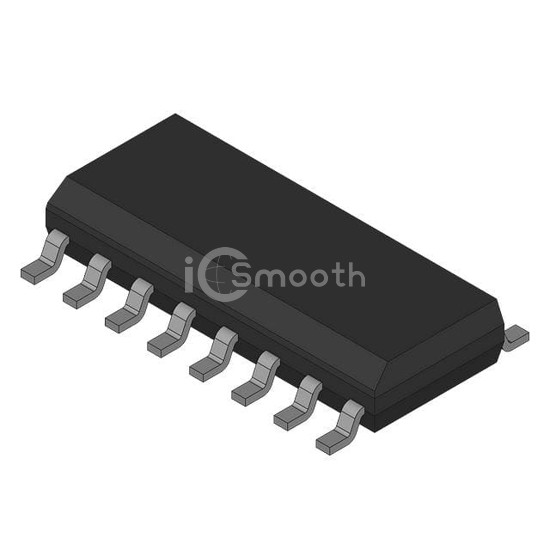

CD74HC109M - Harris Corporation - Logic - Flip Flops
REF: CD74HC109M Harris Corporation
CD74HC109M

Harris Corporation

IC FF JK TYPE DUAL 1BIT 16SOIC

CD74HC109M is a Logic - Flip Flops manufactured by Harris Corporation. IC FF JK TYPE DUAL 1BIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,768

Specifications

17 parameters
Product StatusObsolete
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency60 MHz
Max Propagation Delay @ V, Max CL30ns @ 6V, 50pF
Trigger TypePositive Edge
Current - Output High, Low5.2mA, 5.2mA
Voltage - Supply2V ~ 6V
Current - Quiescent (Iq)4 µA
Input Capacitance10 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-SOIC
Package / Case16-SOIC (0.154", 3.90mm Width)
