CD74AC273SM

In Stock: 7,826

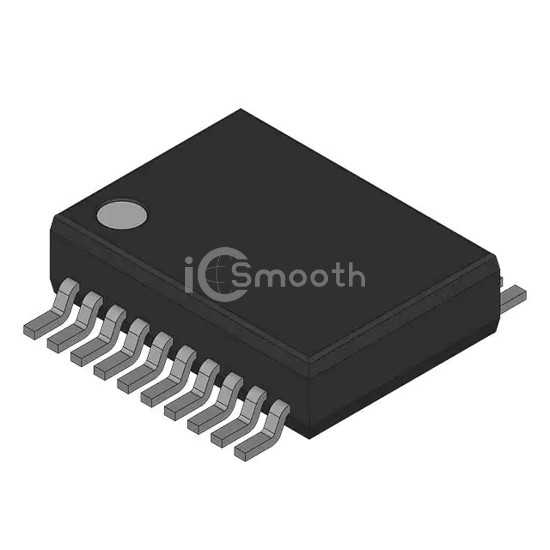

CD74AC273SM - Harris Corporation - Logic - Flip Flops
REF: CD74AC273SM Harris Corporation
CD74AC273SM

Harris Corporation

OCTAL D FLIP-FLOP WITH RESET

CD74AC273SM is a Logic - Flip Flops manufactured by Harris Corporation. OCTAL D FLIP-FLOP WITH RESET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), voltage - supply 1.5V ~ 5.5V, package / case 20-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 7,826

Specifications

17 parameters
Product StatusActive
FunctionMaster Reset
TypeD-Type
Output TypeNon-Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency100 MHz
Max Propagation Delay @ V, Max CL13.5ns @ 5V, 50pF
Trigger TypePositive Edge
Current - Output High, Low24mA, 24mA
Voltage - Supply1.5V ~ 5.5V
Current - Quiescent (Iq)8 µA
Input Capacitance10 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package20-SSOP
Package / Case20-SSOP (0.209", 5.30mm Width)
