CD54HC534F

In Stock: 2,258

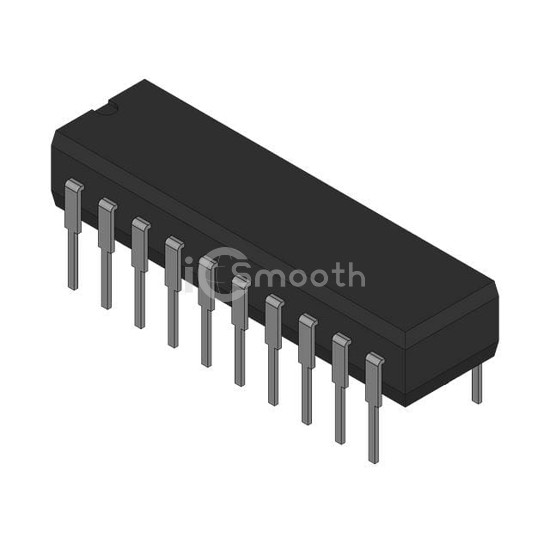

CD54HC534F - Harris Corporation - Logic - Flip Flops
REF: CD54HC534F Harris Corporation
CD54HC534F

Harris Corporation

OCTAL D-TYPE FLIP FLOP

CD54HC534F is a Logic - Flip Flops manufactured by Harris Corporation. OCTAL D-TYPE FLIP FLOP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 20-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,258

Specifications

17 parameters
Product StatusActive
FunctionStandard
TypeD-Type
Output TypeTri-State, Inverted
Number of Elements1
Number of Bits per Element8
Clock Frequency60 MHz
Max Propagation Delay @ V, Max CL28ns @ 6V, 50pF
Trigger TypePositive Edge
Current - Output High, Low7.8mA, 7.8mA
Voltage - Supply2V ~ 6V
Current - Quiescent (Iq)8 µA
Input Capacitance10 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Supplier Device Package20-CDIP
Package / Case20-CDIP (0.300", 7.62mm)
