CD4027BK

In Stock: 8,202

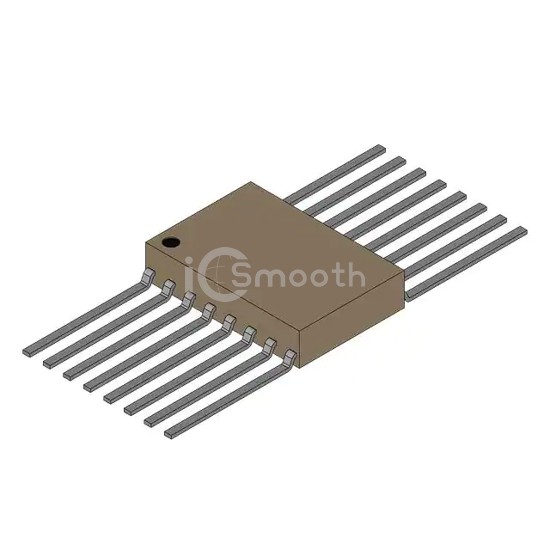

CD4027BK - Harris Corporation - Logic - Flip Flops
REF: CD4027BK Harris Corporation
CD4027BK

Harris Corporation

DUAL J-K FLIP-FLOP

CD4027BK is a Logic - Flip Flops manufactured by Harris Corporation. DUAL J-K FLIP-FLOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), voltage - supply 3V ~ 18V, package / case 16-CFlatPack.

Datasheet Request a Quote

In Stock: 8,202

Specifications

17 parameters
Product StatusObsolete
FunctionSet(Preset) and Reset
TypeJK Type
Output TypeComplementary
Number of Elements2
Number of Bits per Element1
Clock Frequency24 MHz
Max Propagation Delay @ V, Max CL90ns @ 15V, 50pF
Trigger TypePositive Edge
Current - Output High, Low6.8mA, 6.8mA
Voltage - Supply3V ~ 18V
Current - Quiescent (Iq)20 µA
Input Capacitance5 pF
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package16-CFP
Package / Case16-CFlatPack
