HDG104-DN-2

In Stock: 4,267

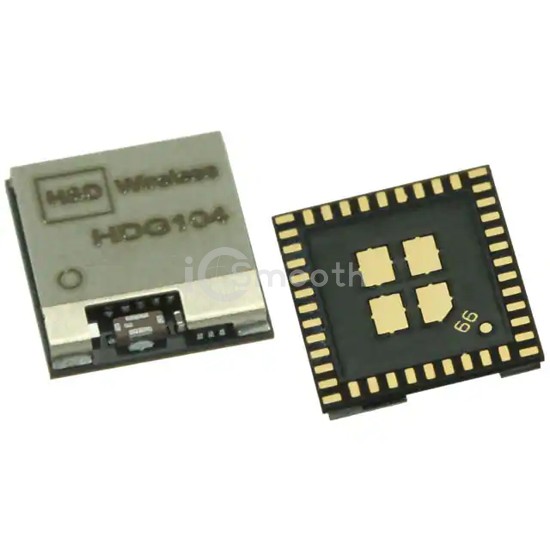

HDG104-DN-2 - H&D Wireless AB - RF Transceiver ICs
REF: HDG104-DN-2 H&D Wireless AB
HDG104-DN-2

H&D Wireless AB

IC RF TXRX+MCU WIFI 44QFN

HDG104-DN-2 is a RF Transceiver ICs manufactured by H&D Wireless AB. IC RF TXRX+MCU WIFI 44QFN. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - supply 2.75V ~ 3.6V, package / case 44-LQFN Exposed Pad Module.

Datasheet Request a Quote

In Stock: 4,267

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/StandardWiFi
Protocol802.11b/g
Modulation16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Frequency2.4GHz
Data Rate (Max)54Mbps
Power - Output17dBm
Sensitivity-96dBm
Memory Size1kB EEPROM, 160kB SRAM
Serial InterfacesSDIO, SPI, UART
GPIO-
Voltage - Supply2.75V ~ 3.6V
Current - Receiving60mA
Current - Transmitting15mA
Operating Temperature-20°C ~ 70°C
Mounting TypeSurface Mount
Package / Case44-LQFN Exposed Pad Module
Supplier Device Package44-QFN SIP (7.7x7.1)
