IGBT MOD 1200V 1130A 3060W

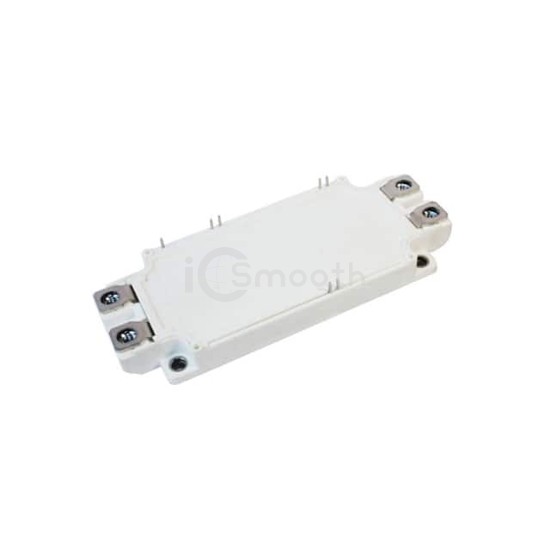

GSID600A120S4B1 is a Transistors - IGBTs - Modules manufactured by SemiQ. IGBT MOD 1200V 1130A 3060W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 1130 A.
In Stock: 2,831
| Product Status | Obsolete |
|---|---|
| IGBT Type | - |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 1130 A |
| Power - Max | 3060 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 600A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 51 nF @ 25 V |
|---|---|
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
