GSID200A170S3B1

In Stock: 2,168

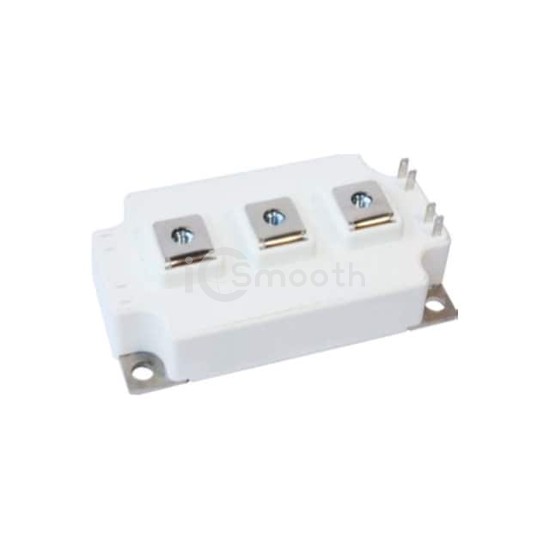

GSID200A170S3B1 - SemiQ - Transistors - IGBTs - Modules
REF: GSID200A170S3B1 SemiQ
GSID200A170S3B1

SemiQ

IGBT MODULE 1200V 400A 1630W D3

GSID200A170S3B1 is a Transistors - IGBTs - Modules manufactured by SemiQ. IGBT MODULE 1200V 400A 1630W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case D-3 Module, current - collector (ic) (max) 400 A.

Datasheet Request a Quote

In Stock: 2,168

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
Configuration2 Independent
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)400 A
Power - Max1630 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 200A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce26 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
