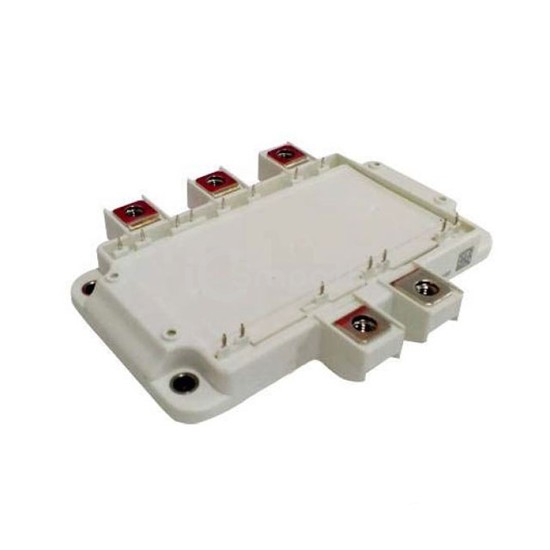

IGBT MOD 1200V 170A 650W
GSID100A120S5C1 is a Transistors - IGBTs - Modules manufactured by SemiQ. IGBT MOD 1200V 170A 650W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 170 A.
In Stock: 5,624
| Product Status | Obsolete |
|---|---|
| IGBT Type | - |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 170 A |
| Power - Max | 650 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 13.7 nF @ 25 V |
|---|---|
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
