Name: GPA042A100L-ND
Brand: SemiQ
SKU: GPA042A100L-ND
Availability: InStock

REF: GPA042A100L-ND SemiQ

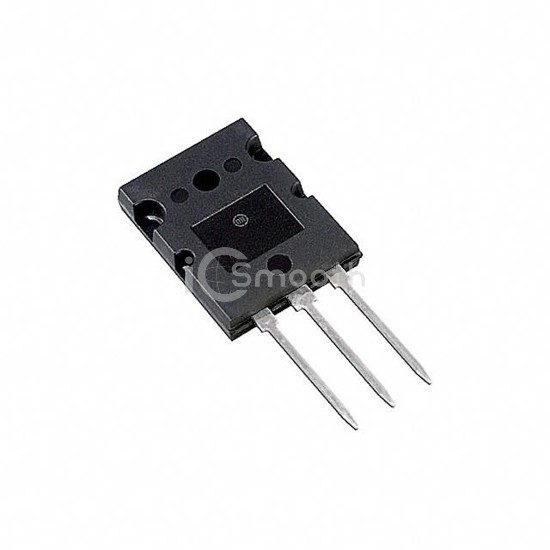

GPA042A100L-ND

IGBT 1000V 60A 463W TO264

GPA042A100L-ND is a Transistors - IGBTs - Single manufactured by SemiQ. IGBT 1000V 60A 463W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 2,485

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	NPT and Trench
Voltage - Collector Emitter Breakdown (Max)	1000 V
Current - Collector (Ic) (Max)	60 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.9V @ 15V, 60A
Power - Max	463 W
Switching Energy	13.1mJ (on), 6.3mJ (off)
Input Type	Standard

Gate Charge	405 nC
Td (on/off) @ 25°C	230ns/1480ns
Test Condition	600V, 60A, 50Ohm, 15V
Reverse Recovery Time (trr)	465 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-264-3, TO-264AA
Supplier Device Package	TO-264
